Preface

Sharing Private network is a common use case in Cloud Environment. Normally RBAC will help you to achieve. Since Newton release, this feature is Available. But the question is which SDN you are using in your Environment. If you are using Opencontrail 3.2 as SDN, you cannot go with RBAC.

Assumptions

Solution

Each network we created in Contrail, will have a route target. So, the Idea in High Level is to Import Route target between each Network.

while you are going to Contrail, you can find Two route targets for the project Project-01 and the nework Project-Network-01,

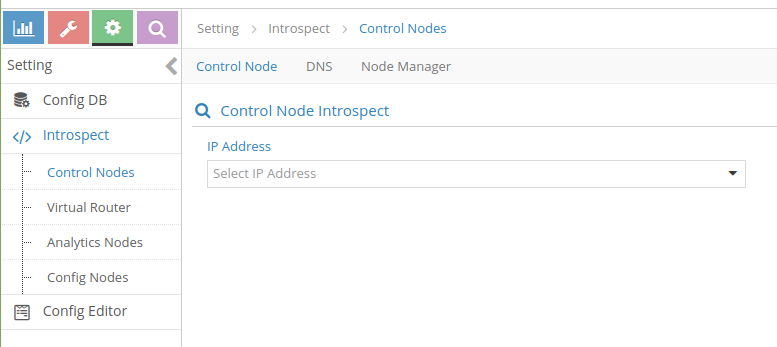

  • Login to Contrail GUI
  • Click on the Gear Icon, left Top
  • Click Introspect

In Right pane,

  • Chose IP Address (Chose any one of the Controller IP)
  • Chose bgb_peer from Module
  • Chose ShowRoutingInstanceReq from Request
  • In the SearchString Enter Project name and Network Name Project-01:Project-Network-01

Check RT

You can see multiple route targets under export_target tab. For example, you will see the below

target:64814:8002398

Copy the Last 4 Digits of the route target and Open a Duplicate copy of your Session in another Tab

  • Chose IP Address (Chose any one of the Controller IP)
  • Chose bgb_peer from Module
  • Chose ShowRtGroupReq from Request
  • In the SearchString Enter Digits we copied 8002398

Go to XSL Grid tab and search for snat , if you are not find anything related to snat you are good to Go.

Import Route Target

  • Go to the Home page of Contrail GUI
  • Click on the Spanner Icon, left Top
  • Click Networking

Network Selection

Now all your Projects in the Environment will be Listed. Chose the Project-02 which is our Destination project to import the RT

  • Check the Network you want to Share with Project-01 and Click on the Gear Icon on right Side and select Edit
  • Click Import Route Target(s)
  • Click the + sign to Add another row
  • In the ASN part enter this 64814 and in Target Part Enter this 8002398

Import RT

Security Group

  • Create a New Security Group in Project-02
  • Allow the Project-Network-01 Subnet in Project-02
